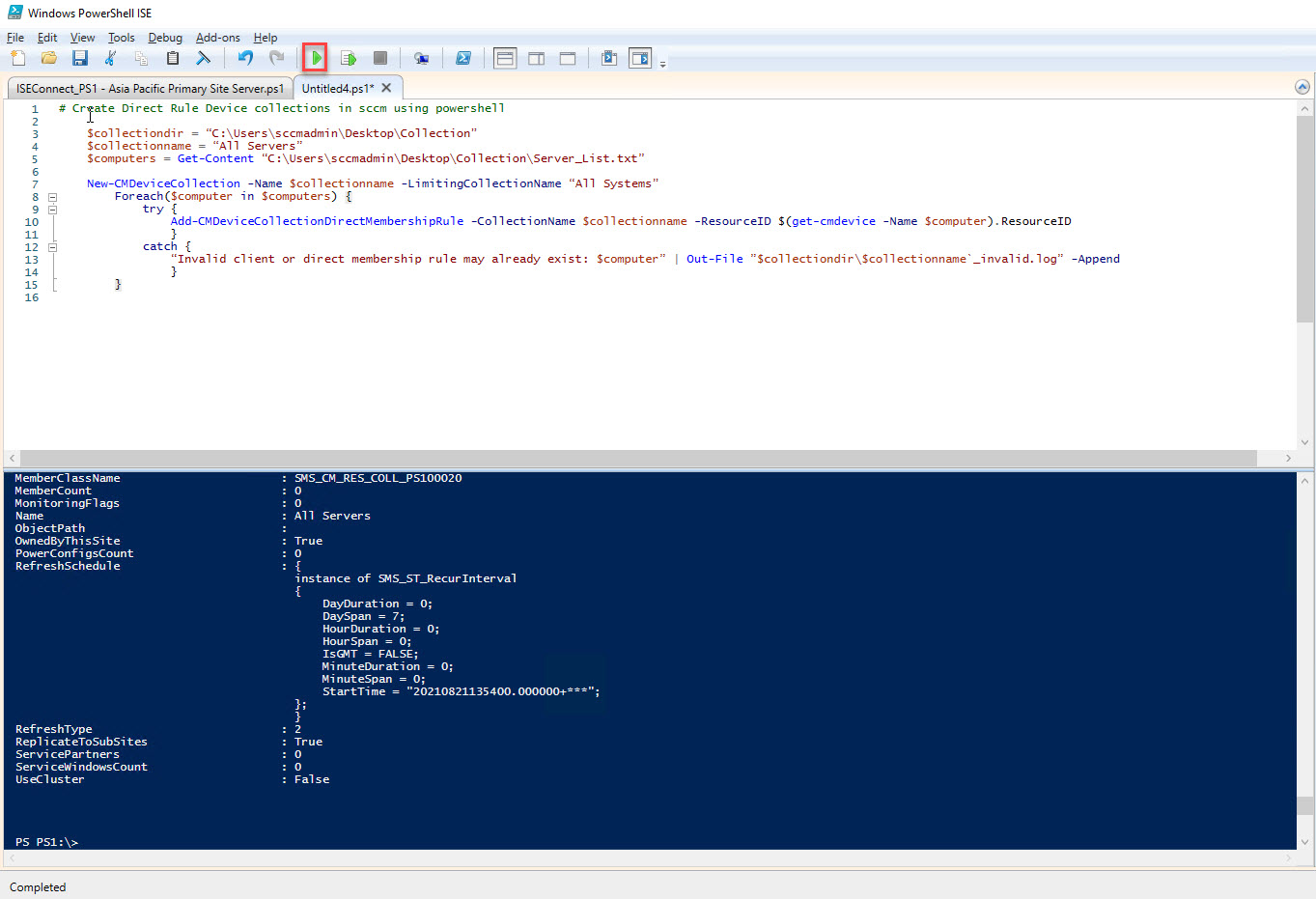

Create Direct Rule Device collections in sccm using powershell

Script:

Replace $collectiondir, $collectionname and $computers before use.

# Create Direct Rule Device collections in sccm using powershell

    $collectiondir = “C:\Users\sccmadmin\Desktop\Collection”
    $collectionname = “All Servers”

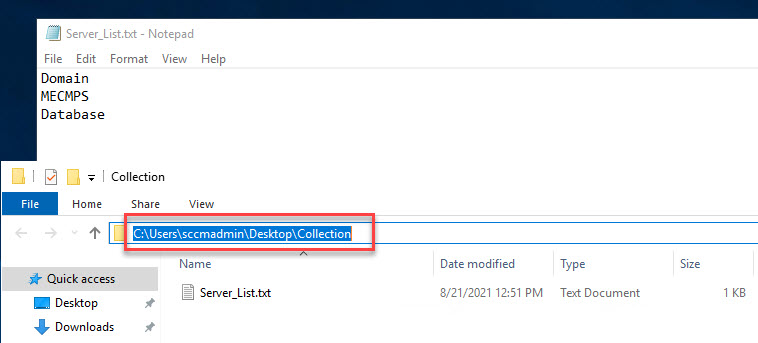

    $computers = Get-Content “C:\Users\sccmadmin\Desktop\Collection\Server_List.txt”

    New-CMDeviceCollection -Name $collectionname -LimitingCollectionName “All Systems”
        Foreach($computer in $computers) {
            try {
                Add-CMDeviceCollectionDirectMembershipRule -CollectionName $collectionname -ResourceID $(get-cmdevice -Name $computer).ResourceID
                }
            catch {
                “Invalid client or direct membership rule may already exist: $computer” | Out-File ”$collectiondir\$collectionname`_invalid.log” -Append
                }
        }

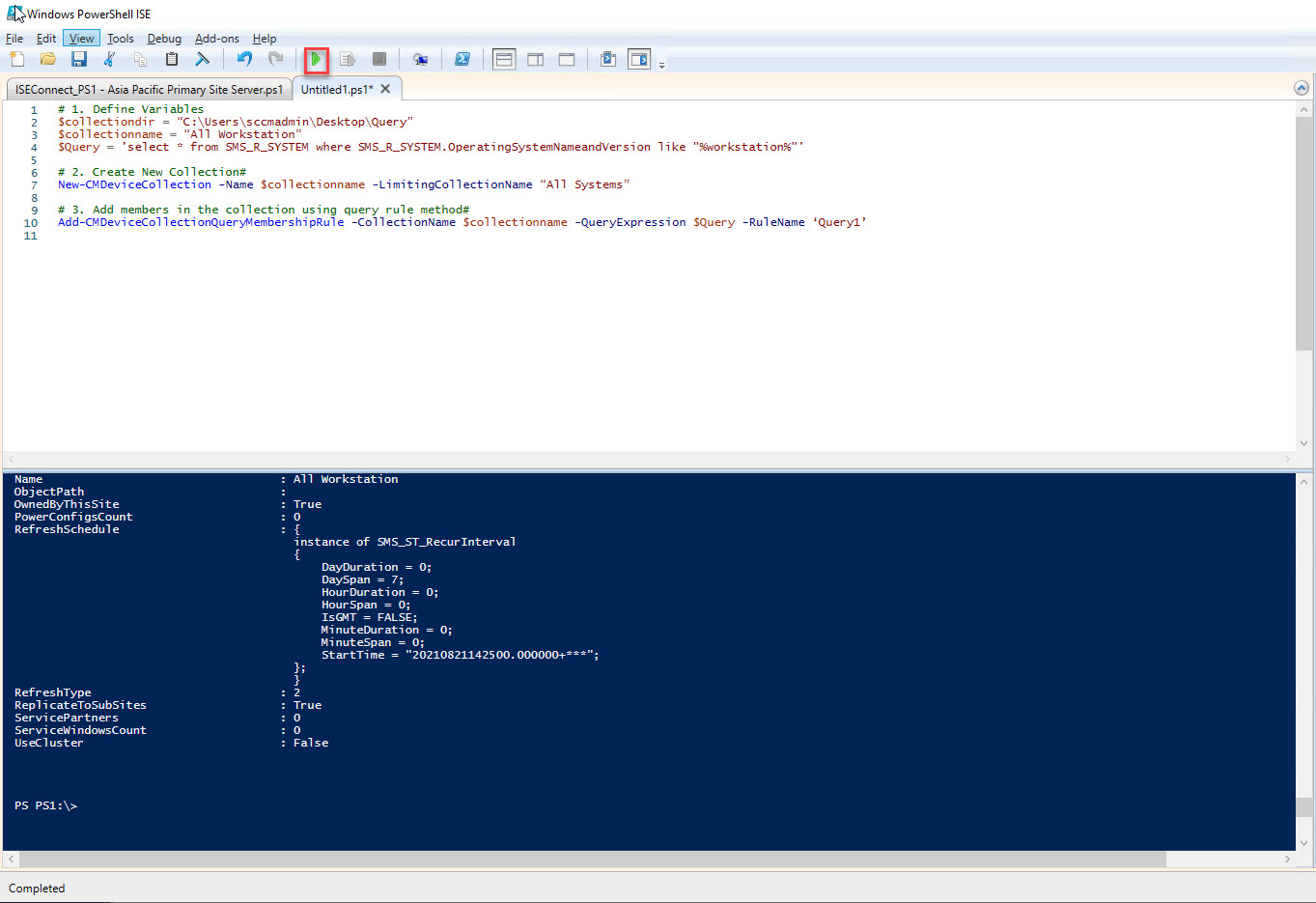

Create Query Rule Device Collection Using PowerShell

Script:

# Create Query Rule Device collections in sccm using powershell

# 1. Define Variables
$collectiondir = “C:\Users\sccmadmin\Desktop\Query”
$collectionname = “All Workstation”
$Query = 'select * from SMS_R_SYSTEM where SMS_R_SYSTEM.OperatingSystemNameandVersion like "%workstation%"'

# 2. Create New Collection#
New-CMDeviceCollection -Name $collectionname -LimitingCollectionName “All Systems”

# 3. Add members in the collection using query rule method#
Add-CMDeviceCollectionQueryMembershipRule -CollectionName $collectionname -QueryExpression $Query -RuleName ‘Query1’

If you need a collection of all servers, simple replace the %workstation% with %Server% in the query statement.

Troubleshoot

During running the script, I got into trouble. According to my tutorial, the query line goes like:

$Query = “select * from SMS_R_SYSTEM where SMS_R_SYSTEM.OperatingSystemNameandVersion like ‘%workstation%’”

So it’s double quotations marks wrap the key word workstation with single quotation marks, but in my environment this doesn’t work at first, for several times; then I changed it reversely to single quotation marks wrap double marks, and it worked:

$Query = 'select * from SMS_R_SYSTEM where SMS_R_SYSTEM.OperatingSystemNameandVersion like "%workstation%"'

Later I tried again the double marks outside, it also worked. This is tricky.

And also I found that the first line is not necessary, ‘cause it’s not used:

$collectiondir = “C:\Users\sccmadmin\Desktop\Query”

I’ve tested the script without this line and it worked too.
