SCCM Prerequisites Step 2


Point all the virtual machines to internal DNS server in Azure

Join all the computers to the domain

Create account for each virtual machine and Give permission to the accounts

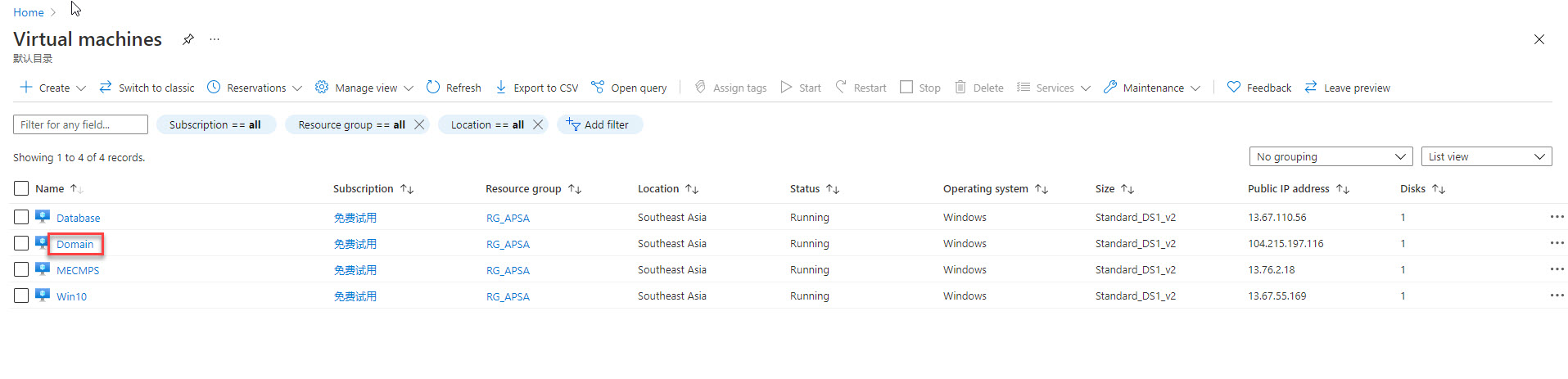

Point all the virtual machines to internal DNS server in Azure

Currently they’re pointing to external DNS

DNS1

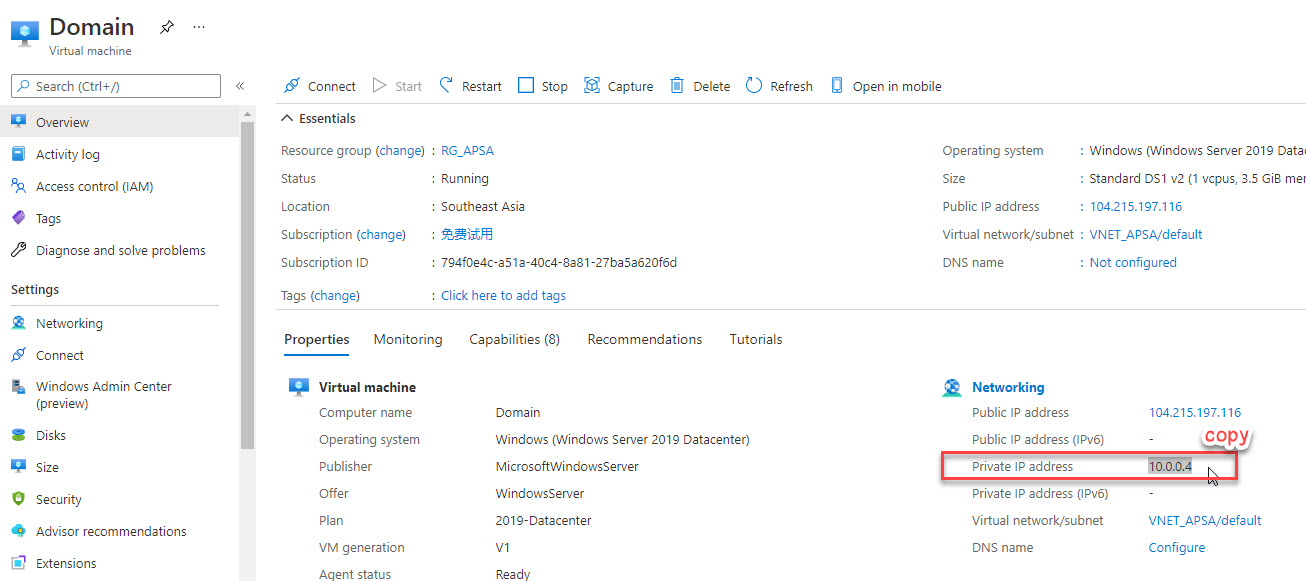

DNS2

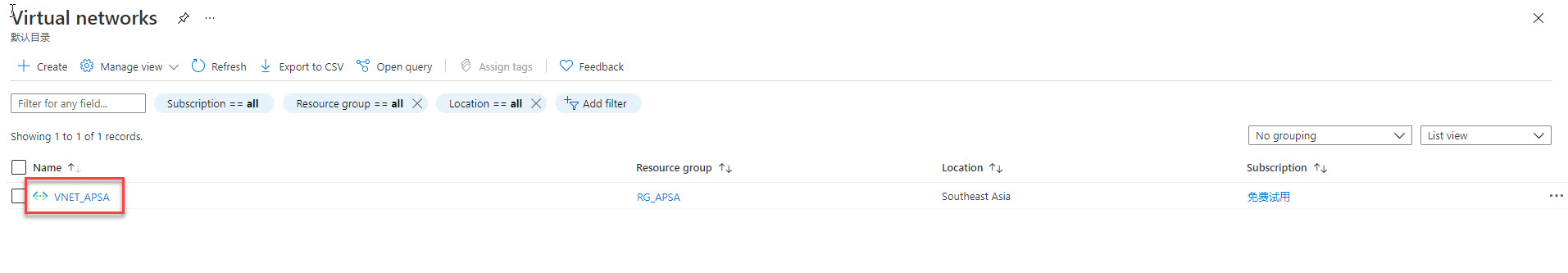

DNS3

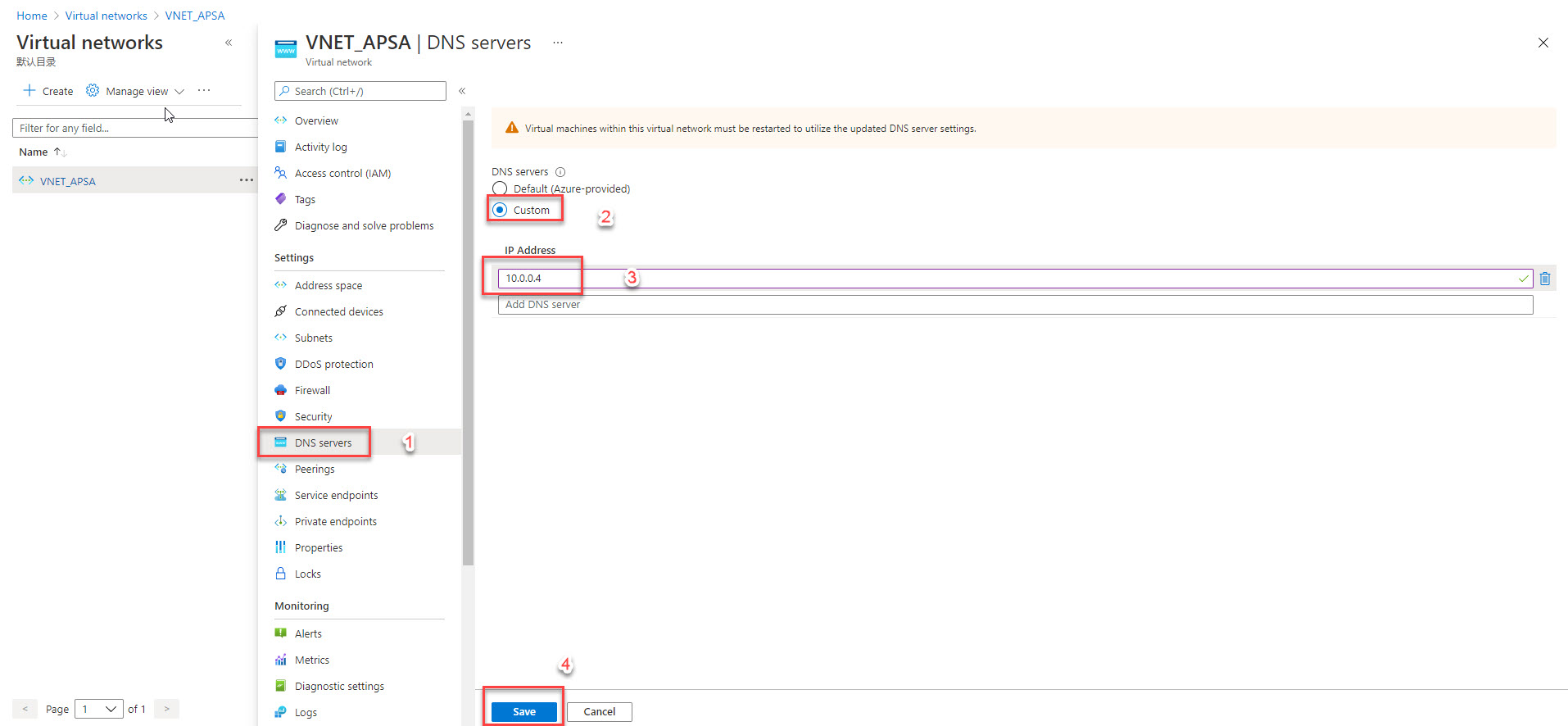

DNS4

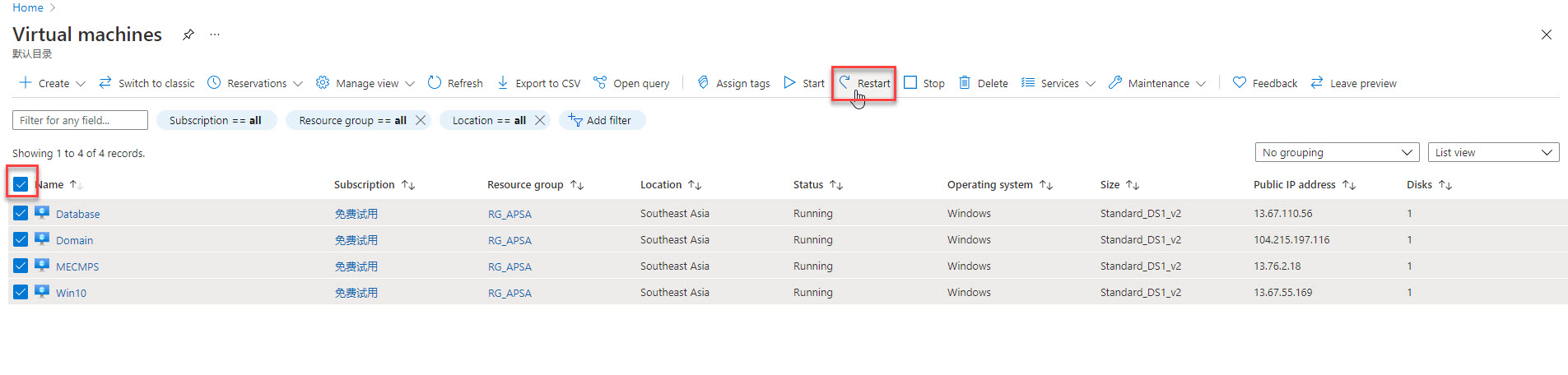

Restart all virtual machines for the replication to take effect

Restart

Join all the computers to the domain

Connect to all 4 virtual machines

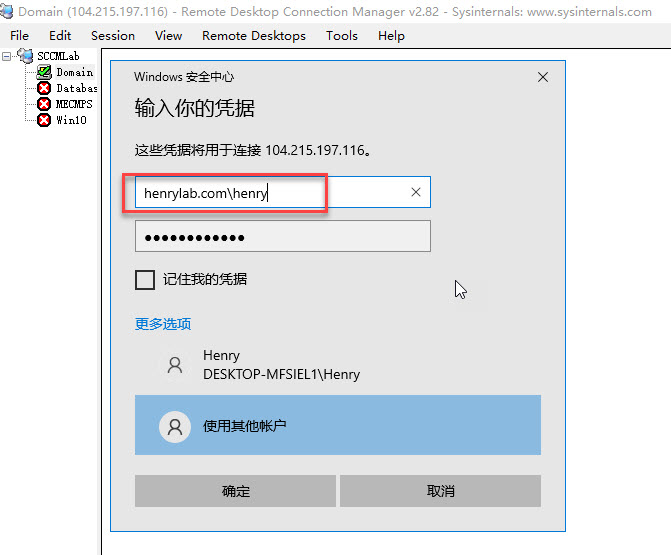

Conenct to Domain server with domain account:

Connect

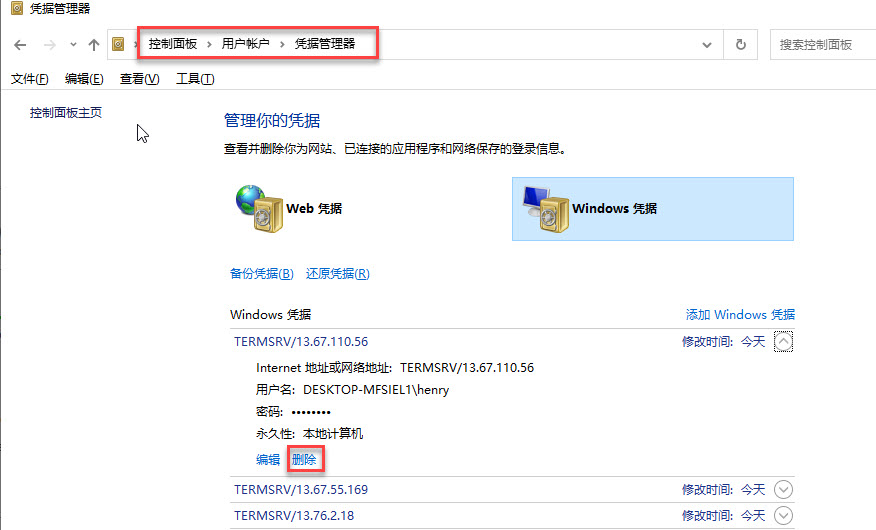

If you've saved password for machine before, you can go to control panel to delete saved credentials:

Credential

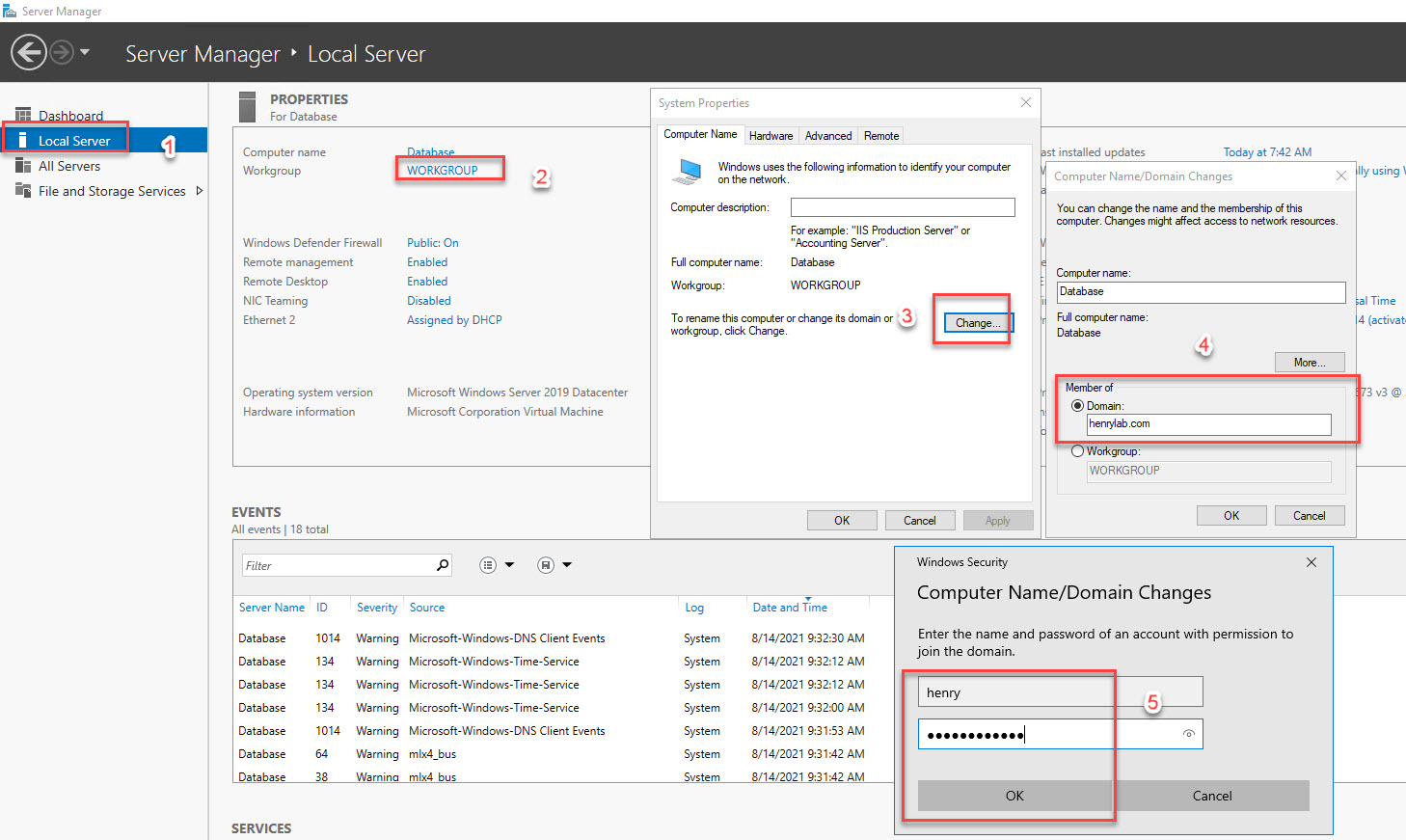

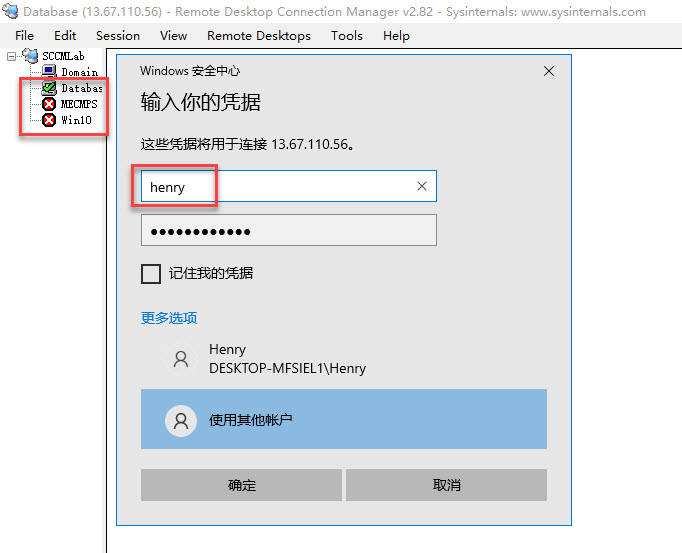

Conenct to another servers with local account first, and join domain:

Connect2

joinDomain1

joinDomain2

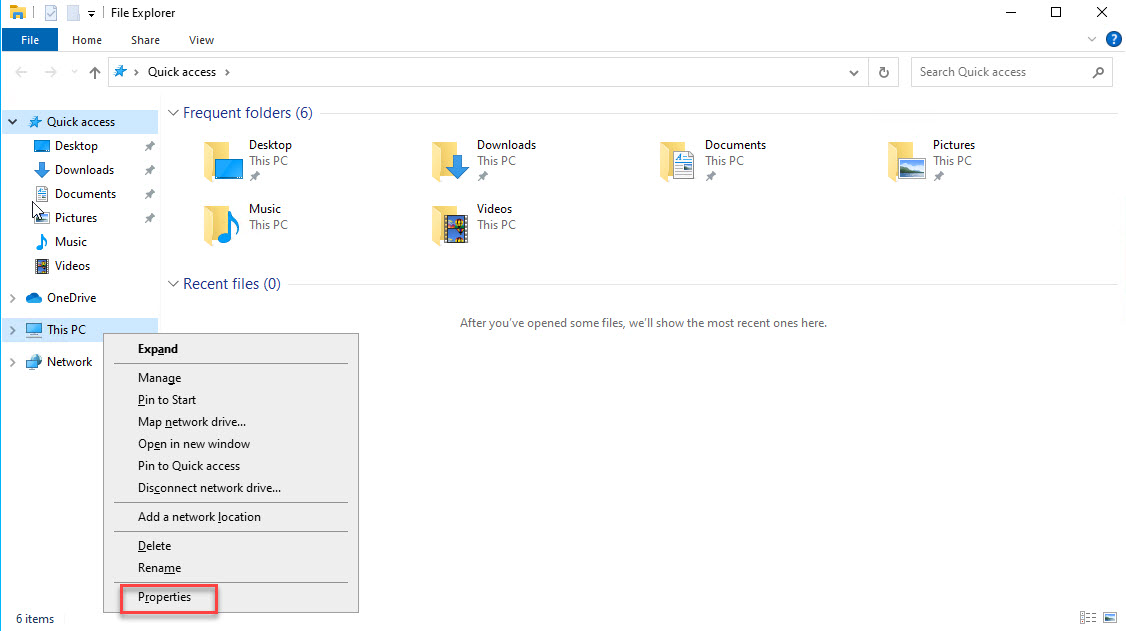

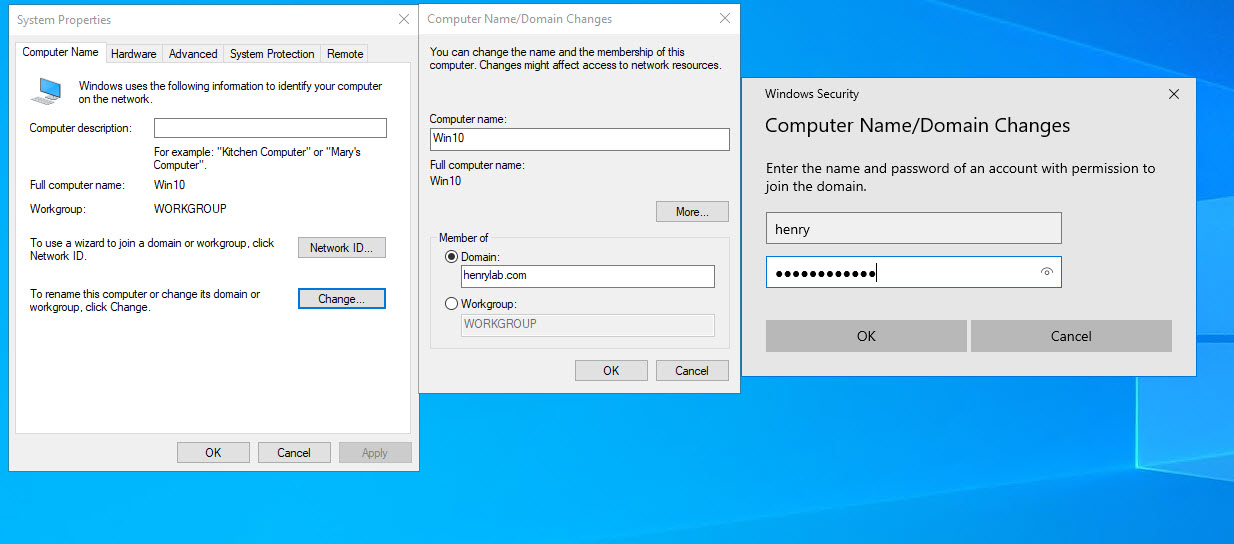

Join domain for Win10:

joinDomain3

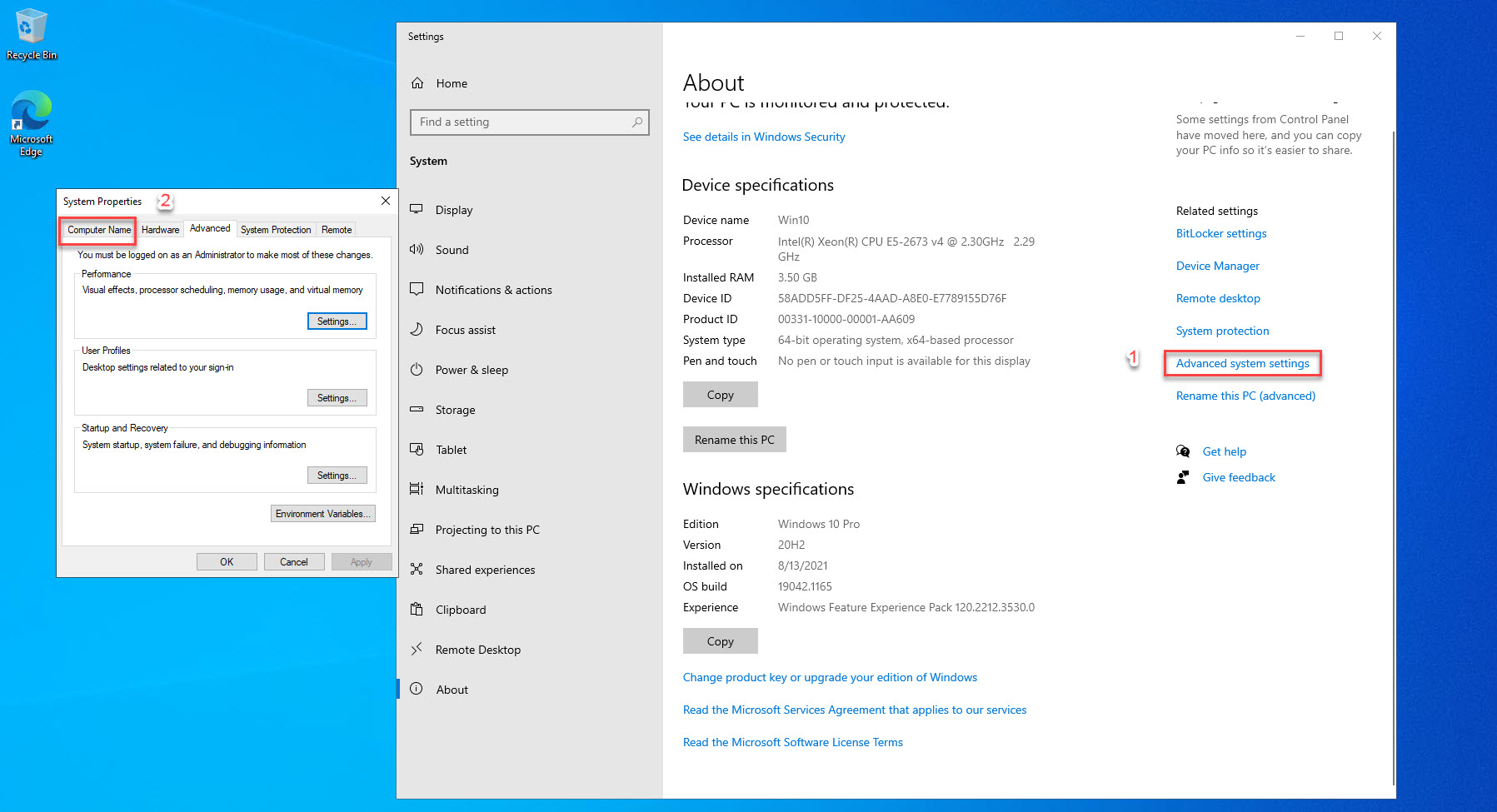

joinDomain4

joinDomain5

Create account for each virtual machine

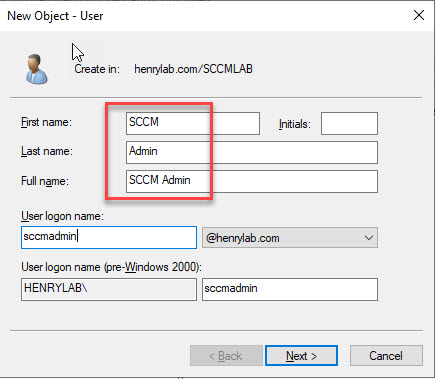

Create a new OU, mine is "SCCMLAB", and create another 3 accounts in it:

  • sccmadmin (for SCCM)
  • sqladmin (for SQL)
  • ironman (for Win10)

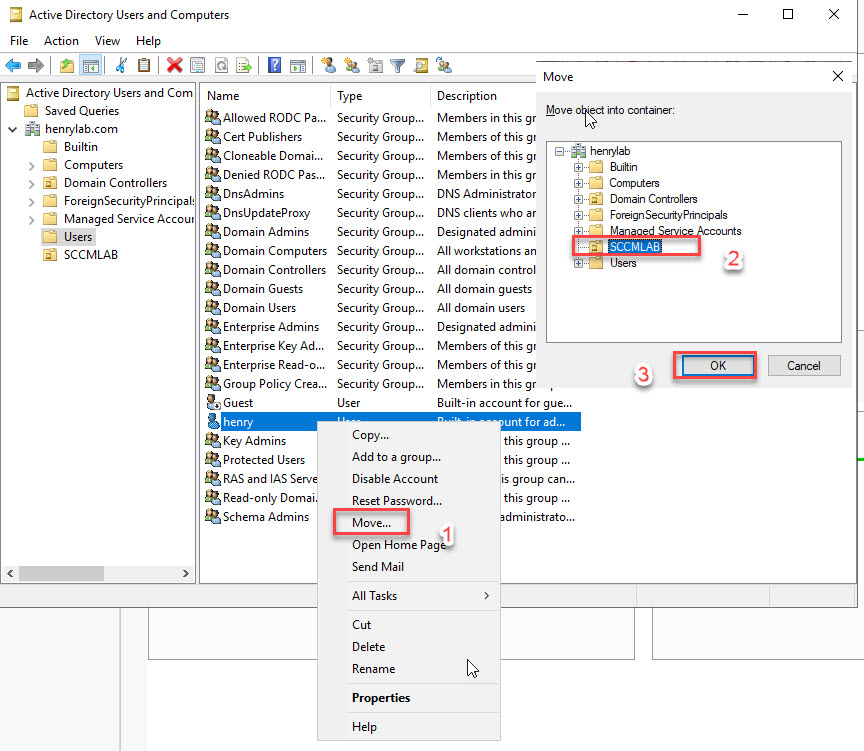

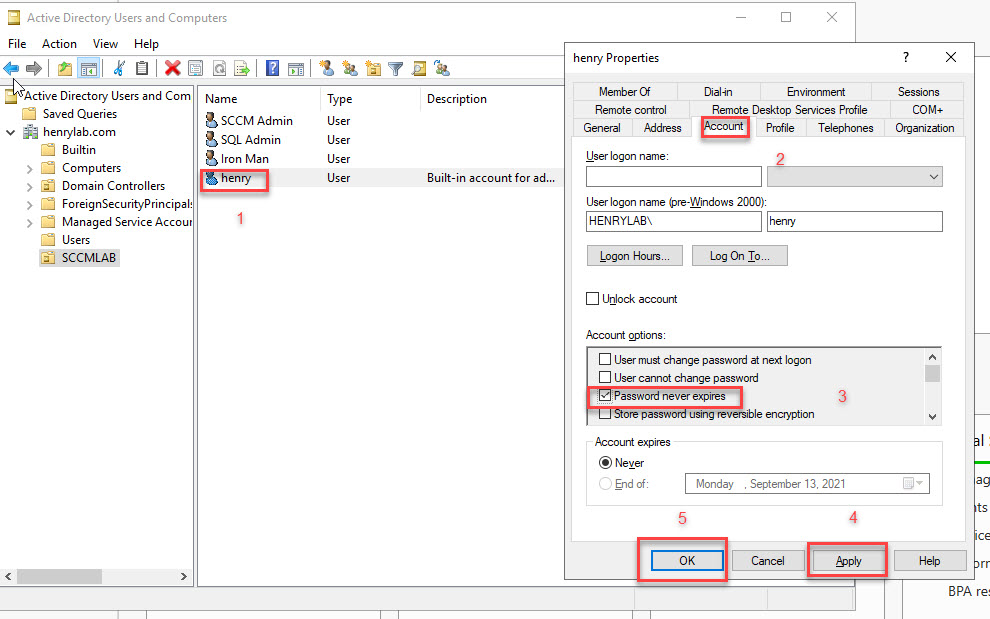

And then add sccmadmin and sqladmin to Domain Admins group, and move my own domain administrator account "henry" to the new OU:

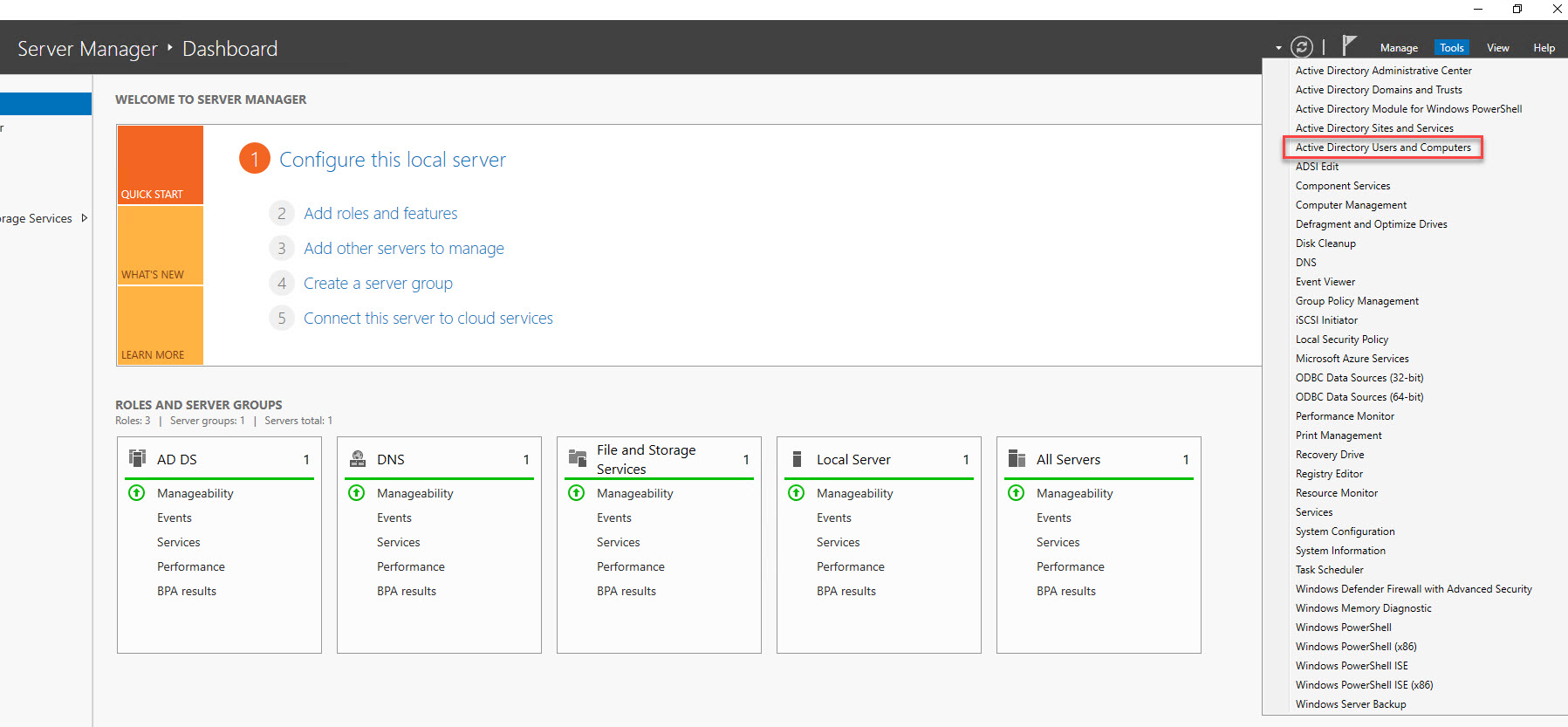

account1

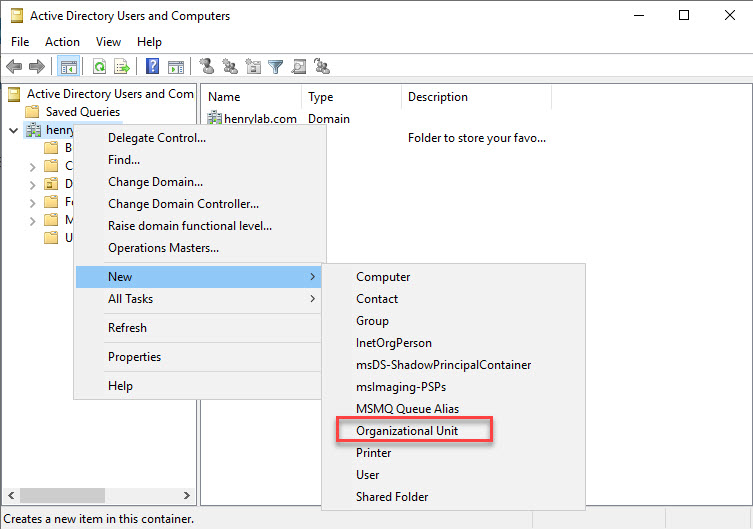

account2

account3

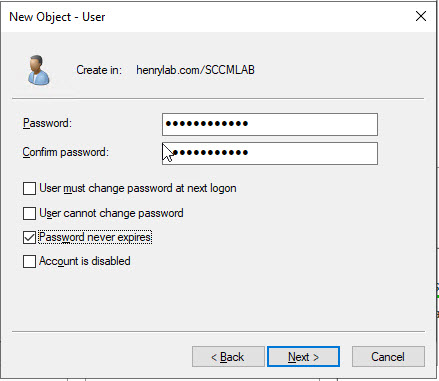

account4

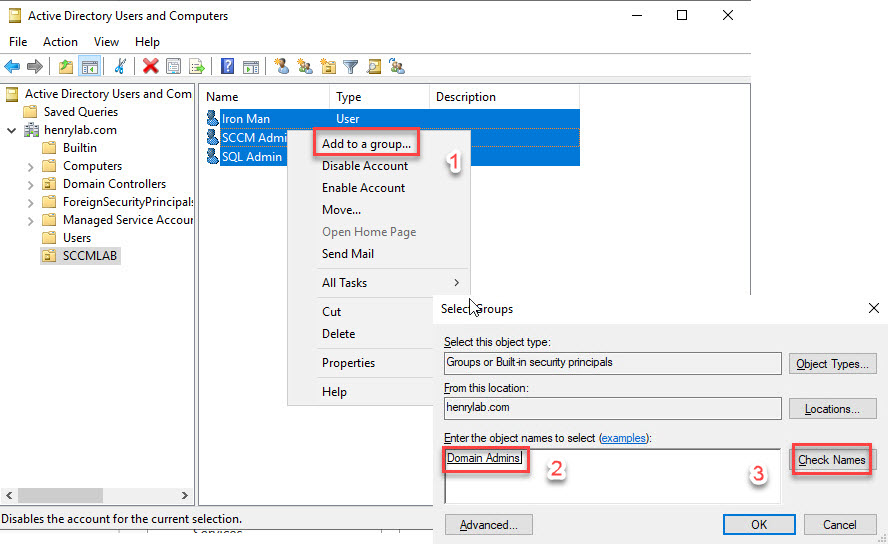

account5

account6

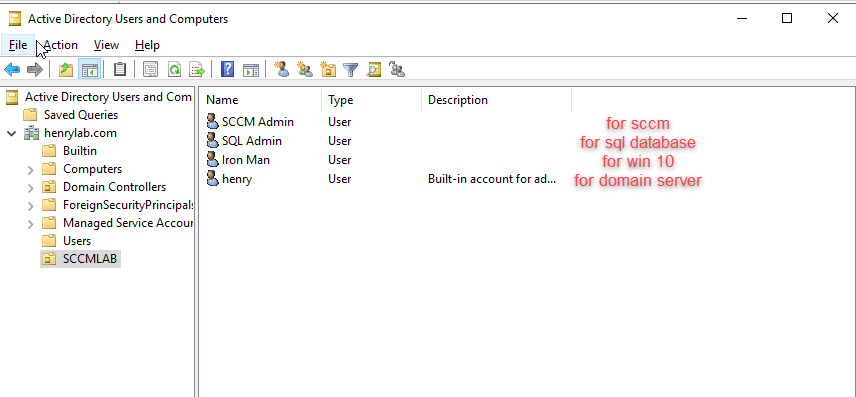

account7

account8

Save the domain account credentials in RDCMAN so that I don't need to input passwords manually when connecting:

RDCMAN1

RDCMAN2
